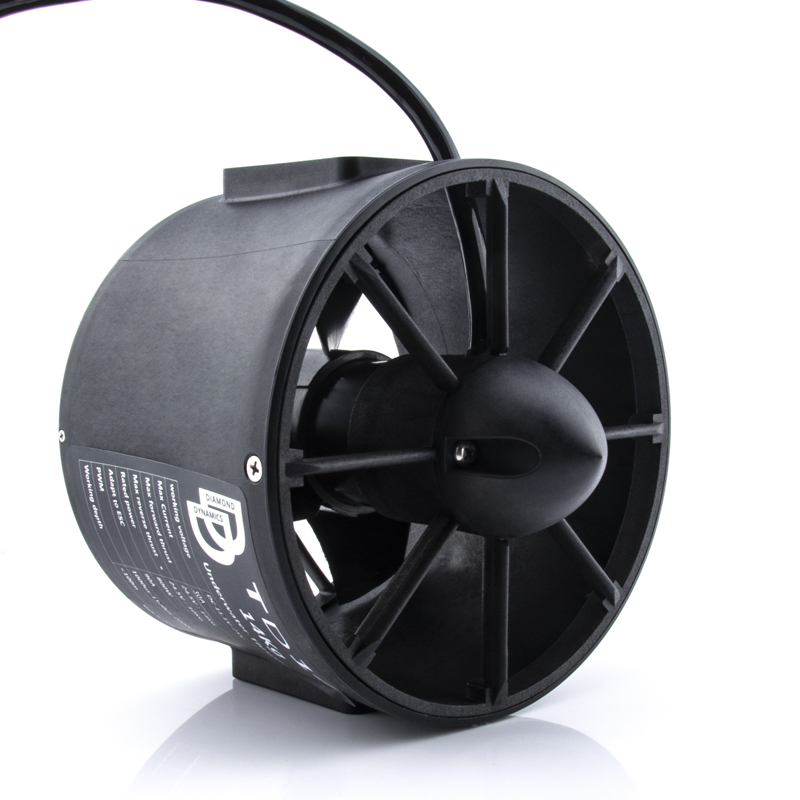

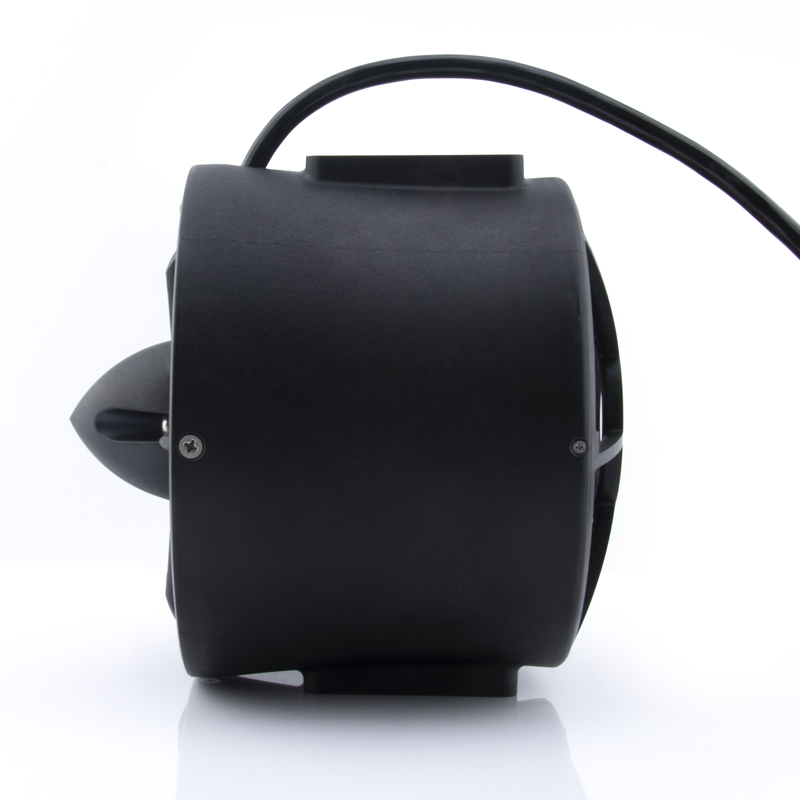

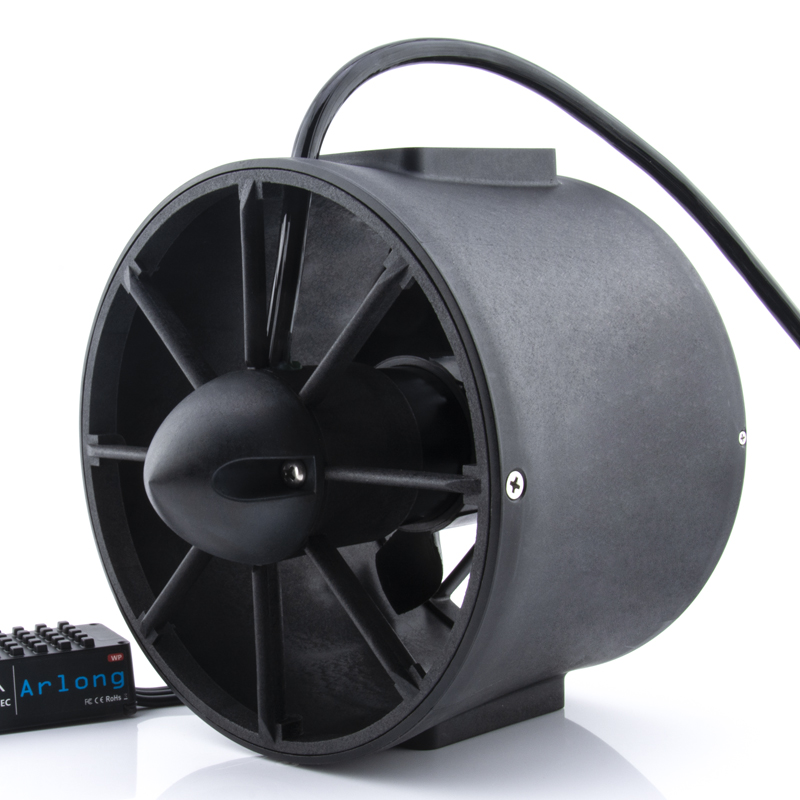

DD underwater thruster---14KG thrust TD14

Typical application of TD14 Underwater Thruster:electric inflatable boats, electric surfboards, electric assisted rowing boats, electric fishing boats, electric trawlers, unmanned boats, submarines, water rescue equipment (lifeboats, lifebuoys), water circulation systems。



1: Integrated mold design
It adopts nylon glass fiber composite material, which has good mechanical properties and corrosion resistance.
2:  Full waterproof technology, the depth can reach 100 meters
Motor encapsulated technology, long last working underwater.


3：High precision baring prolongs the motor life

4：Accompany with high performance bi-directional full waterproof ESC
PWM：1500-2000us (forward)，1500-1000us(backward)

5：The power system is reasonably matched and the efficiency is high.
The high-strength composite propeller has been strictly matched with the motor after many simulation analysis tests, so that the propeller's working efficiency continues to be optimal, and it can reach a thrust output of 13-14 kg at a power of 720W;

6：Easy assemble

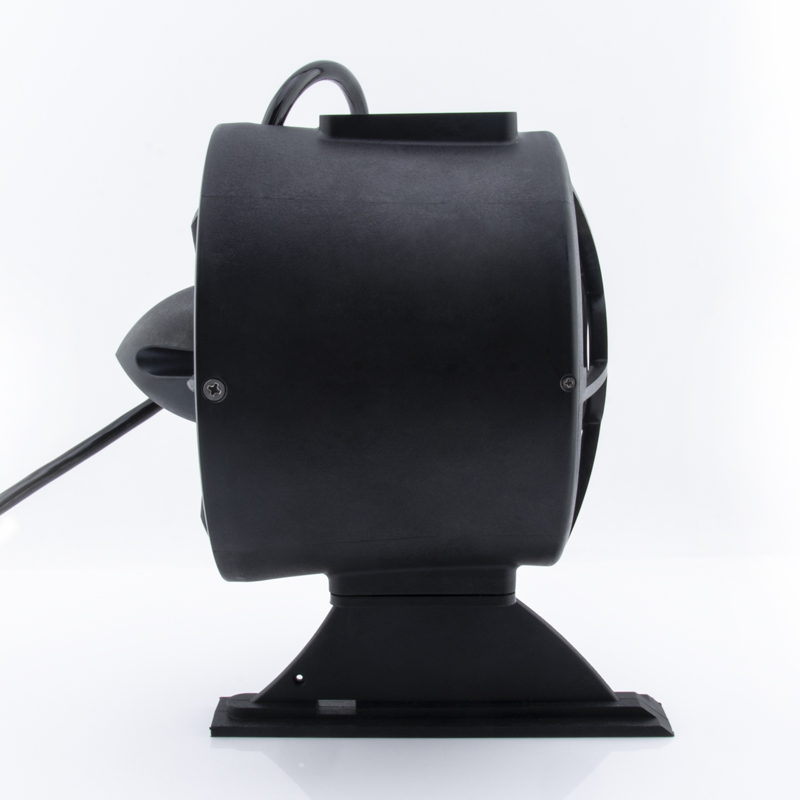

Modularized base, meeting with different field requirement
